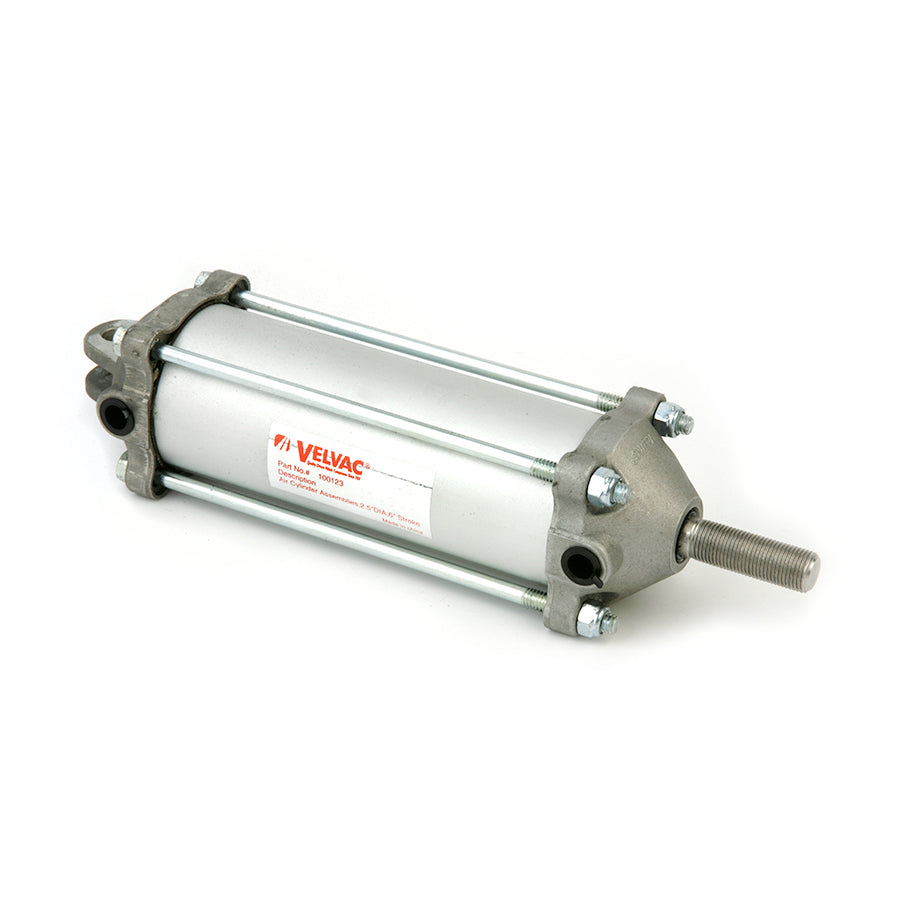

2-1/2" Air Cylinder
2-1/2" Air Cylinder
SKU: 100206
Regular price
$398.80
/ each
Regular price
Sale price
$398.80
/ each
6" Stroke, 11.89" Retracted, 17.89" Extended
Overview & Features
Overview & Features
- 300 service stainless steelcylinder shafts provide excellent corrosion resistance and extended cycle life -cylinders tested to over 500000 cycles.
- Lightweight, corrosion resistant aluminum cylinder tube with die cast aluminum end caps.
- Rear clevis cast as integral part of the rear cover for improved durability and mounting integrity.
- Double acting, Emralon-coated piston cup assures smooth long lasting operation even in cold weather conditions (to - 40°).
- Front end cap assembly includes pressure seal,dirt seal and oil impregnated bronze bushing.
- Cylinder tube imprinted with part number and date code for quick identification.
- All cylinders are factory pressure and leak tested prior to shipping.
- Front Cover Kit-Includes front cover with bushing and seals installed and two cylinder gaskets.
- Rear Cover Kit-Includes rear cover with two cylinder gaskets.
- Piston Cup Kit-Includes piston cup, lock nut and two cylinder gaskets.
- Shaft Kit-Includes shaft, lock nut and two cylinder gaskets.
Specifications
Specifications
| Style: | Tailgate Cylinders |
|---|---|
| Thrust at 100 psi: | 491 lbs |
| Draw at 100 psi: | 460 lbs |
| Shaft Thread: | 5/8 - 18 |
| Shaft Diameter: | 5/8" |
| Retracted Length: | 11.89" |
| Shipping Weight: | 1.000 Pound |
| Port Size: | (2) 1/4" |
| Minimum Bursting Pressure: | 150 psi |
| Extended Length: | 17.89" |
| Cylinder Type: | Push/Pull |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| PACCAR | 100206VEL |
|---|---|
| TRAMEC SLOAN | 400256 |
| TRAMEC SLOAN | 400256 |
