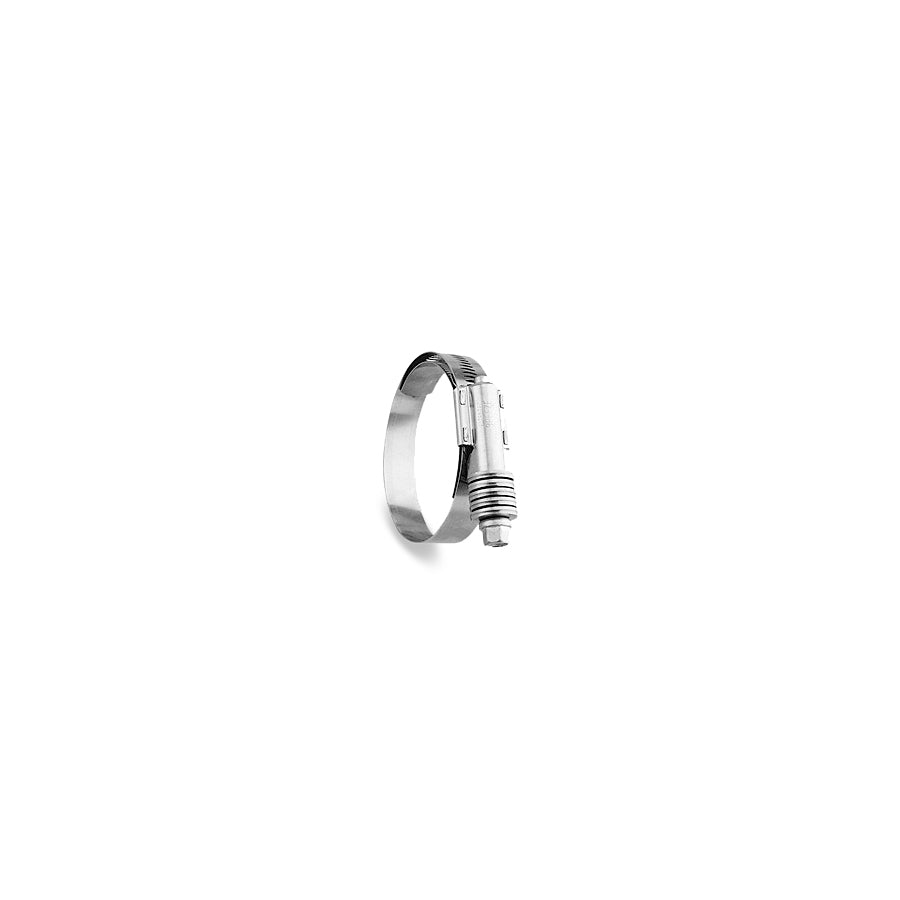

Constant-Torque® Hose Clamps
Constant-Torque® Hose Clamps
SKU: 022425
Regular price
$19.38
/ each
Regular price
Sale price
$19.38
/ each
Torque Rated at 40-125 in./lbs., Clamping Range 45-67, 1-3/4" - 2-5/8"
Overview & Features
Overview & Features
- Patented Belleville spring design eliminates "cold flow hose leaks" by automatically adjusting diameter for hose compression set or expansion/contraction of hose and fittings due to temperature changes.
- Specified by many top fleets for new vehicle installations.
- Recommended for bus, truck and heavy-duty equipment air intake and coolant connections.
- Extended inner liner covers worm gear slots to protect against extrusions and damage.
- All stainless steel construction.
- Extended adjustment range permits fewer stocked parts for complete coverage.
Note:
For proper installation, the Belleville spring washer stacks should be nearly collapsed flat and the screw tip should extend beyond 1/4". Using a torque wrench, tighten to recommended torque range. Constant-Torque® is a registered trademark of Breeze Industrial Products.
For proper installation, the Belleville spring washer stacks should be nearly collapsed flat and the screw tip should extend beyond 1/4". Using a torque wrench, tighten to recommended torque range. Constant-Torque® is a registered trademark of Breeze Industrial Products.
Specifications
Specifications
| Product: | Clamps |
|---|---|
| Type: | Constant-Torque® Clamps |
| Clamping Range: | 1-3/4" - 2-5/8" |
| Torque Rating: | 50-125in./lb. |
| Note: | For proper installation, the Belleville spring washer stacks should be nearly collapsed flat and the screw tip should extend beyond 1/4". Using a torque wrench, tighten to recommended torque range. Constant-Torque® is a registered trademark of Breeze Industrial Products. |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| BREEZE | CT 250 L SS |
|---|---|
| DYNACRAFT | D2006-4337 |
| IMPERIAL | 72377 |
| PDC | CT250LSS |
| TRAMEC SLOAN | 491325 |
| TECTRAN | HK250 |
