Dash Valve
Dash Valve
SKU: 032248
Regular price
$160.43
/ each
Regular price
Sale price
$160.43
/ each

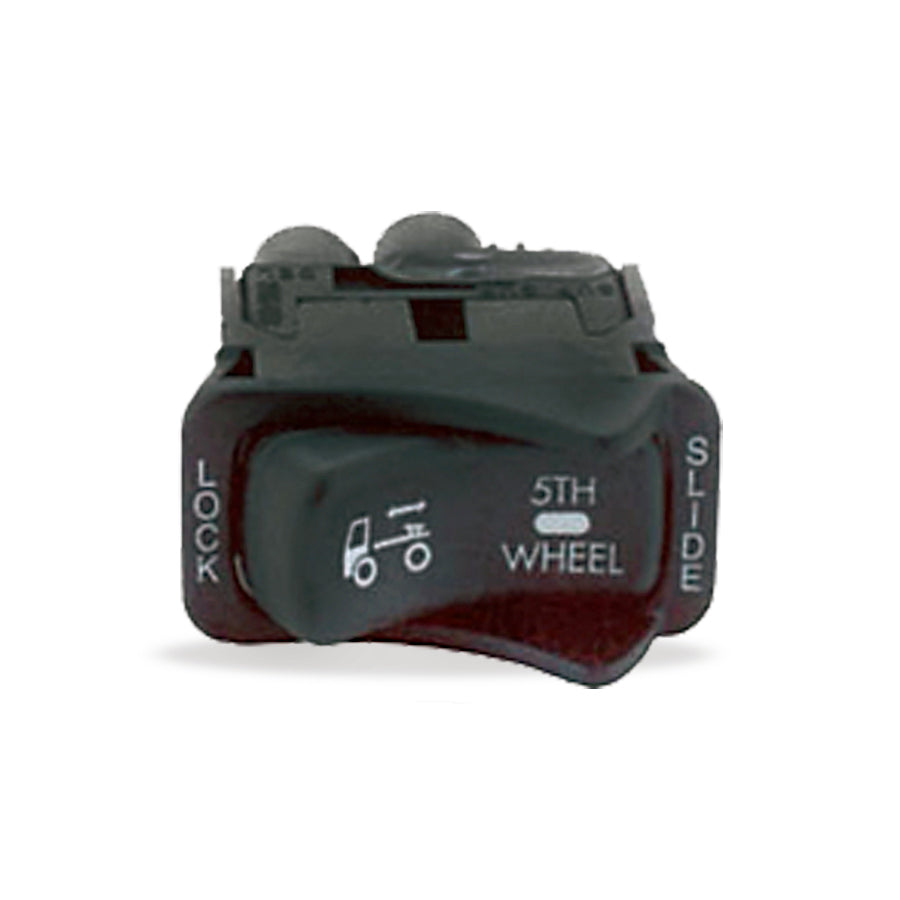

Universal Fifth Wheel Slide Dash Valve, 2 Position, 3-Way Air Valve
Overview & Features
Overview & Features
- Two-position three-way air valves.
- Includes DOT compliant (FMVSS 106) push-to-connect fittings for 1/4" tubing.
- Built-in standard four pin electrical connector for backlit function.
- Additional rear port used to easily jumper air lines between valves.
- Fits standard 22mm x 44mm openings, easily replacing valves found on many current model trucks.
- Operating Temperature: -10° F to +160° F.
- Rated Pressure: 150 psi maximum.
- Rated Current Load: 1 amp at 14 VDC (max).
- Electric Connector: Valve connector mates with Metric-Pack 150 Series connector Part No. 12045813 with female terminals (for reference only-not available from Velvac and not included).
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Specifications
Specifications
| Product: | Dash Valves |
|---|---|
| Category: | Air Accessory Valves |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| AUTOMANN | 170.1231 |
|---|---|
| AUTOMANN | 170.1231 |
| PAI | FCV-5451-002 |
| TECTRAN | DV32442 |
