- Nitrile seals for long cycle life.
- High impact knobs.
- Balanced spool design.
- Operating temperature range from -40°F to +180°F.
- Stainless steel hardware.
- Aluminum shaft with delrin detent ring provides easy identification of valve position.
- Threaded aluminum mounting boss for 1" diameter through hole mounting (nuts included).
- (3) 9/32" diameter body mounting holes.
- (5) 1/4" - 18 FPT ports.
- Normal operating pressure 100 psi.

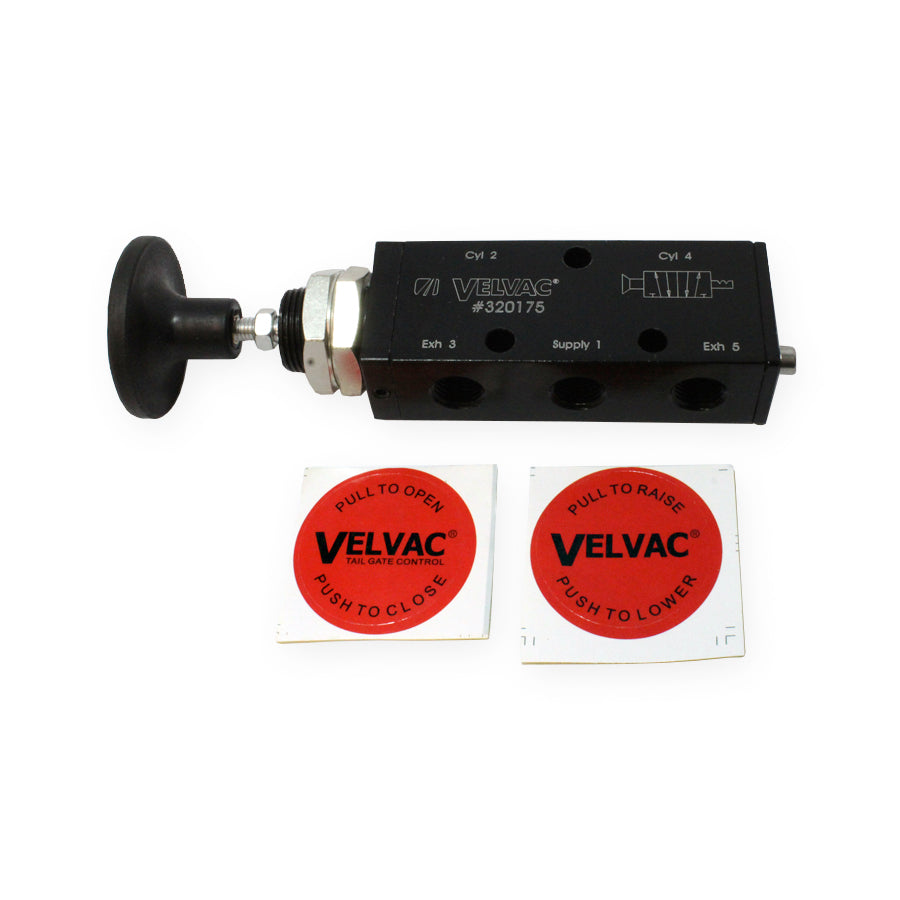

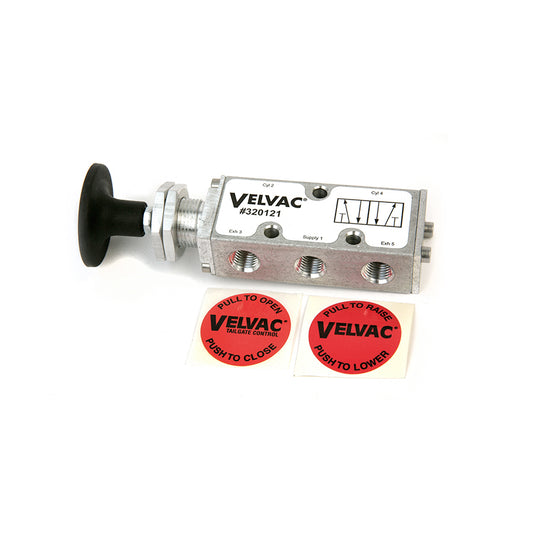

- Includes two faceplates:
Pull to Open/Push to Close
Pull to Raise/Push to Lower.
Note:
Applications for valves: Two position valve operates any double acting air cylinder. Three position valve operates systems where full air or vacuum pressure must be isolated.
