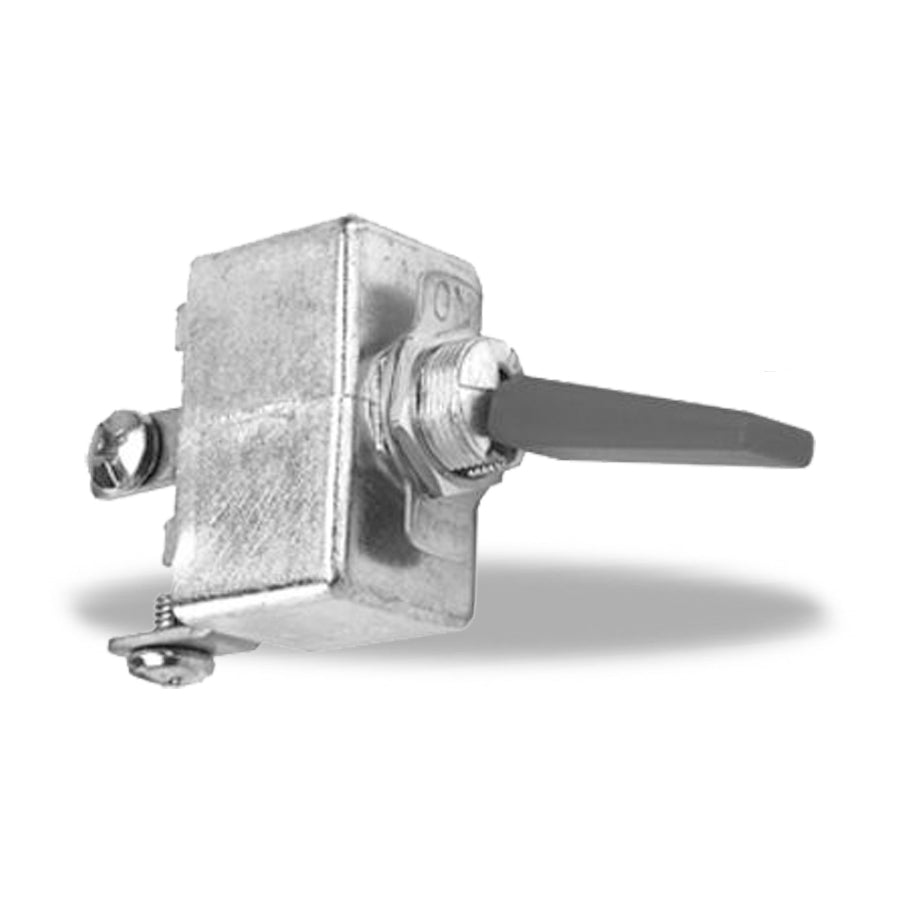

Heavy Duty Single Pole Toggle Switch
Heavy Duty Single Pole Toggle Switch
SKU: 090186
Regular price
$11.50
/ each
Regular price
Sale price
$11.50
/ each
SPST Poles, 50 Amp, 12 VDC, On/Off Circuitry, (2) Screw Terminals, Black Handle
Overview & Features
Overview & Features
- Frame and support constructed from steel with zinc chromate, brass terminals.
- Neoprene-sealed toggles are moisture and dust resistant.
- Fully assembled with locating ring/toggle nut and On/Off faceplate.
- 1/2" diameter recommended mounting hole; all toggles must be installed with provided hex nut behind panel to prevent damage during installation.
- Packaging for all switches displays easily on pegboards or wire display racks.
Note:
Die cast housing with silver-plated contacts, heavy copper terminals, stem measures 15/32" diameter x 15/32" long.
Die cast housing with silver-plated contacts, heavy copper terminals, stem measures 15/32" diameter x 15/32" long.
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Specifications
Specifications
| Product: | Switches |
|---|---|
| Current Rating: | 50 Amp |
| Terminals: | (2) Screw |
| Poles: | SPST |
| Circuitry: | On/Off |
| VDC: | 12 |
| Battery Terminals: | (2) Screw |
| Note: | Die cast housing with silver-plated contacts, heavy copper terminals, stem measures 15/32" diameter x 15/32" long. |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| DEL CITY | 73240 |
|---|
