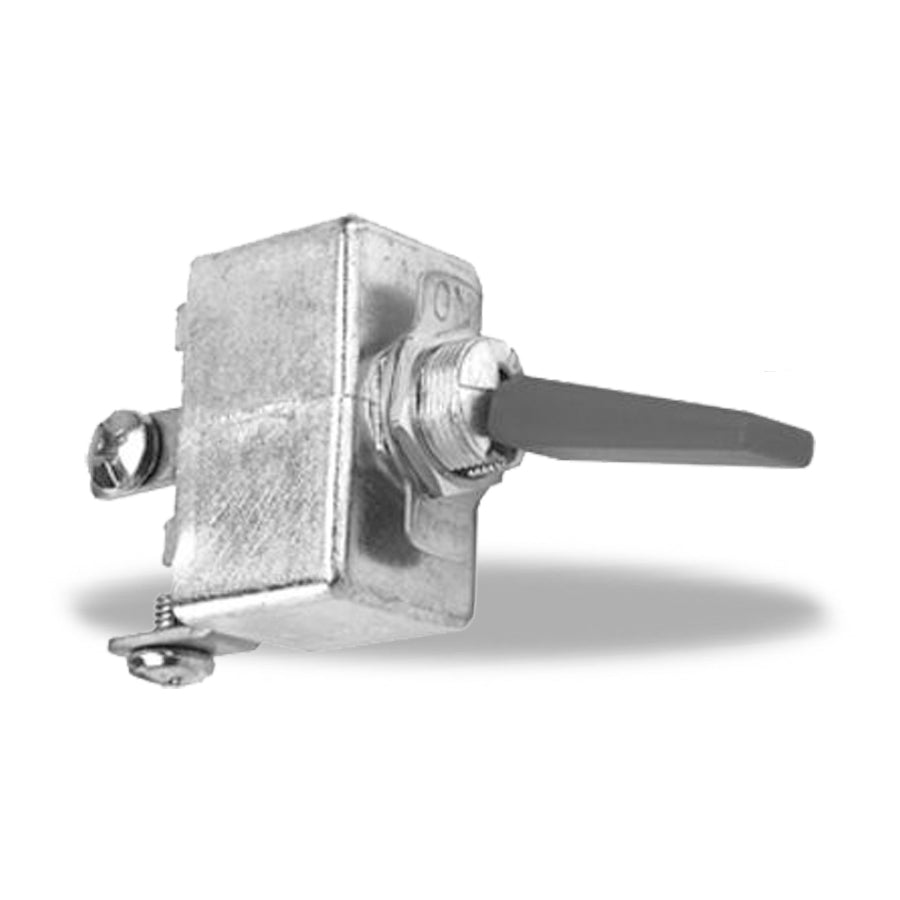

Heavy Duty Single Pole Toggle Switch
Heavy Duty Single Pole Toggle Switch
SKU: 090193
Regular price
$34.38
/ each
Regular price
Sale price
$34.38
/ each
SPST Poles, 30 Amp, 12 VDC, On/Off Circuitry, (3) .250" Flat Blade Terminals, Blue LED Handle
Overview & Features
Overview & Features
- Frame and support constructed from steel with zinc chromate, brass terminals.
- Neoprene-sealed toggles are moisture and dust resistant.
- Fully assembled with locating ring/toggle nut and On/Off faceplate.
- 1/2" diameter recommended mounting hole; all toggles must be installed with provided hex nut behind panel to prevent damage during installation.
- Packaging for all switches displays easily on pegboards or wire display racks.
Note:
Black toggle handle tipped with LED, minimum draw requirements for LED is 20 mA at 12 VDC.
Black toggle handle tipped with LED, minimum draw requirements for LED is 20 mA at 12 VDC.
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Specifications
Specifications
| Product: | Switches |
|---|---|
| Current Rating: | 30 Amp |
| Terminals: | (3) .250" Flat Blade |
| Poles: | SPST |
| Circuitry: | On/Off |
| VDC: | 12 |
| Battery Terminals: | (3) .250" Flat Blade |
| Note: | Black toggle handle tipped with LED, minimum draw requirements for LED is 20 mA at 12 VDC. |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| DEL CITY | 73060 |
|---|
