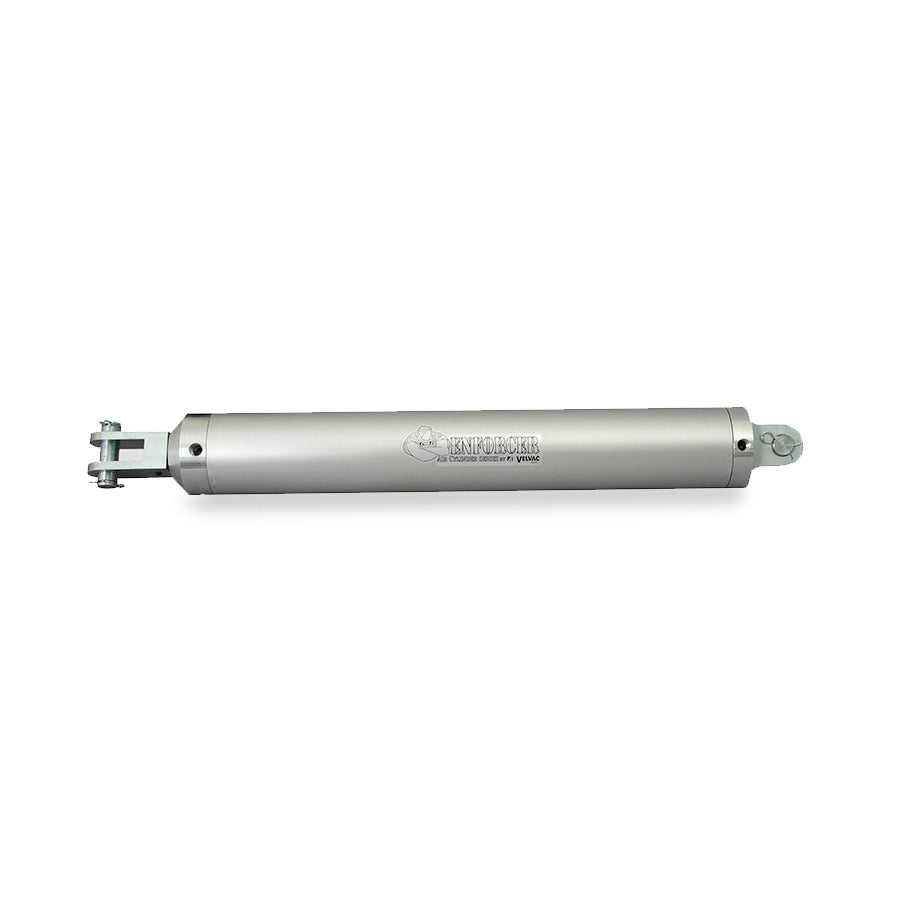

High Lift Cylinder
High Lift Cylinder
SKU: 100424
Regular price
$1,133.55
/ each
Regular price
Sale price
$1,133.55
/ each
4" Bore, 24" Stroke
Overview & Features
Overview & Features
Enforcer Air Cylinder Series
- Cylinder Type- Aluminum tubing with a 16 RMS finish
- Front Cover- Solid aluminum with oiltight bronze bushing. Delrin seal and 3/8" NPT port
- Rear Cover- Solid aluminum with mounting hole for 1" clevis pin and 3/8" NPT port
- Piston Cup- Solid aluminum with Nitrile "O" ring rated at -40 to 185degree F and UHMW polyethylene wear band
- Temp rating- -40 to 185 degree F
- Pressure rating- Standard operation pressure 100psi, 10psi minimun to 150psi maximum
Specifications
Specifications
| Style: | High Lift Cylinders |
|---|---|
| Thrust at 100 psi: | 1275 lbs |
| Draw at 100 psi: | 1158 lbs |
| Retracted Length: | 34.5" |
| Minimum Bursting Pressure: | 150 psi |
| Extended Length: | 58.5" |
| Cylinder Type: | Push/Pull |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| PACCAR | 100424VEL |
|---|---|
| TECTRAN | 29400X24 |
