Preset and Pivot Upgrade Kit
Preset and Pivot Upgrade Kit
SKU: 748355
Regular price
$54.65
/ each
Regular price
Sale price
$54.65
/ each
Heavy Duty, Kit Contains All Upper and Lower Pivot Hardware for One Mirror Assembly
Overview & Features
Overview & Features
- Designed for use on all Velvac preset loops except those with tension control stop preset as found in kit Part No. 748371
- Improves pivot holding force on mirrors with large loops or large/heavy mirror head combinations
- Unique spring/washer combination retains pivot system torque to keep mirror in set viewing position until moved and provides superior detent action for foldaway applications
- Life cycle tested to over 50,000 pivot cycles
- Preset rivet plate fits over existing preset rivets to extend life of loop and improve cycle performance
- Easy retrofit - can be completed without taking mirror assembly off the vehicle
- 5/16" -18 x 1-3/4" stainless steel pivot bolt and 5/16" - 18 x 2" stainless steel preset bolt

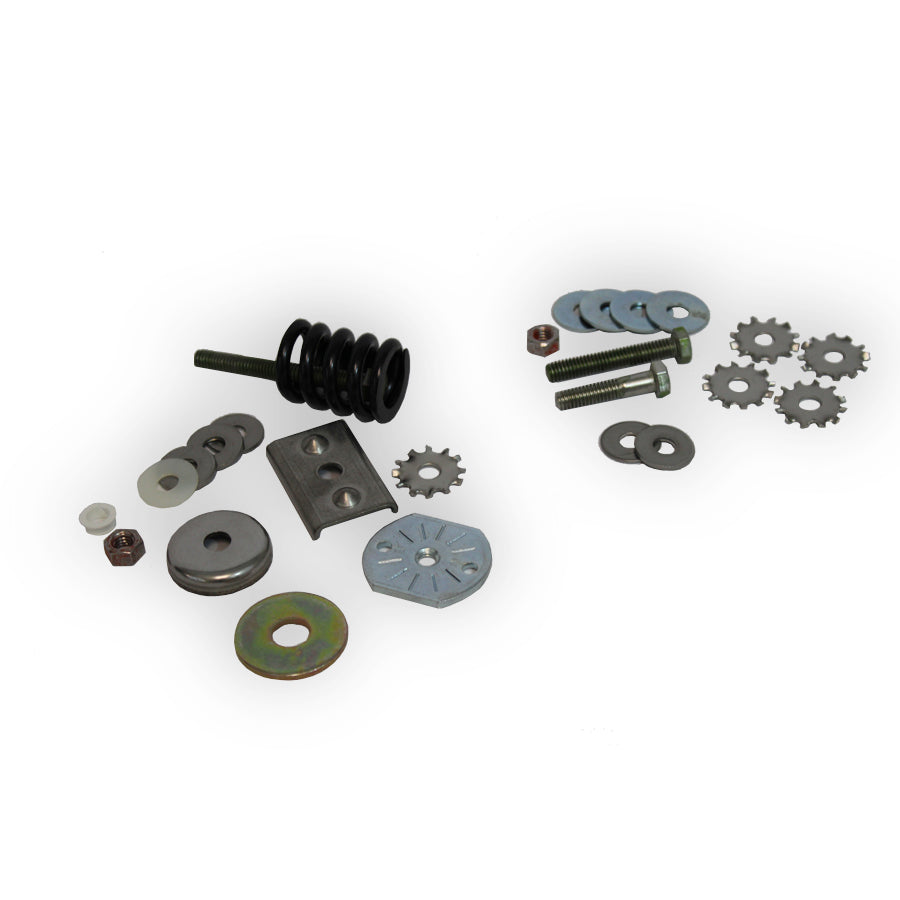

- Kit contains all upper and lower pivot hardware for one mirror assembly
- Kit can be used to upgrade mirror loops with standard rubber or spring preset systems (similar to part number 748009 or 712979). Order one part number 748355 per side.
Specifications
Specifications
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| ROSCO | ROS SCR7011 |
|---|
