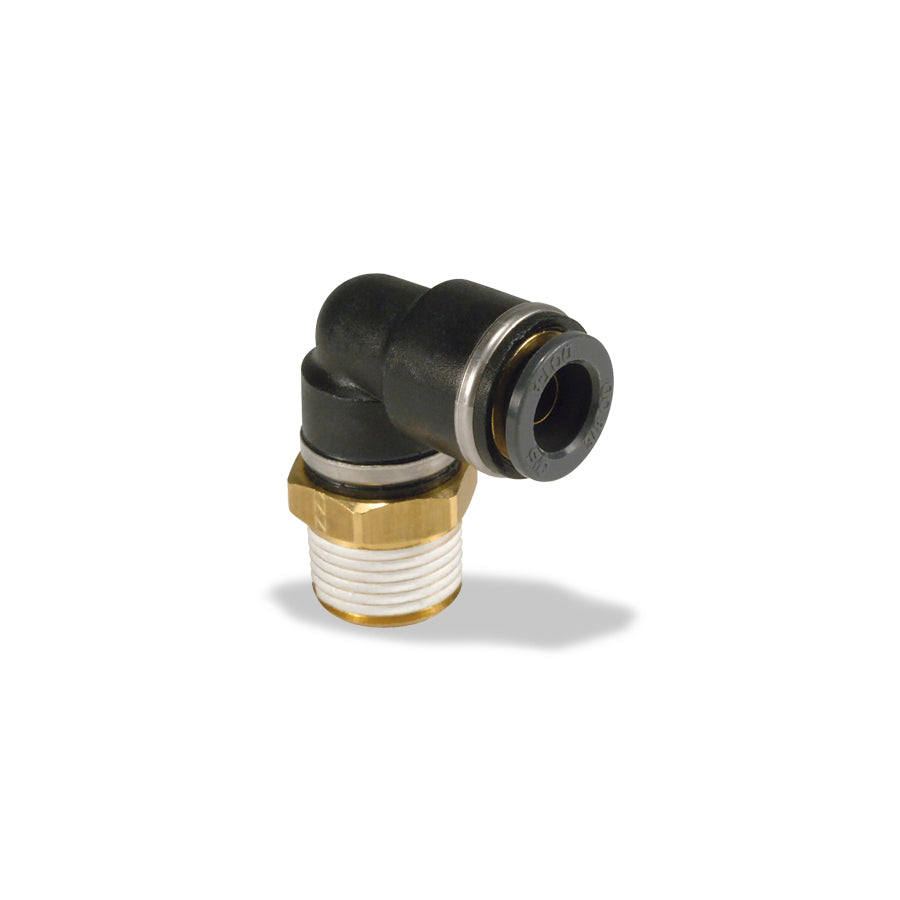

Push-Lock Air Brake Fitting, 90° Male Swivel Elbow
Push-Lock Air Brake Fitting, 90° Male Swivel Elbow
SKU: 016242
Regular price
$8.63
/ each
Regular price
Sale price
$8.63
/ each
1/4" x 1/8"
Overview & Features
Overview & Features
- Designed for use with SAE J844 nylon tubing.
- DOT 49 CFR 571.106 compliant.
- High strength composite fittings offer weight savings over all brass style fittings—currently being used by many OE vehicle manufacturers.
- Fittings meet performance requirements as stated in SAE J1131.
- Operating temperatures from -45° F to +140° F.
- Maximum operating pressure 145 psi.
- Elbows and male branch fittings have built-in swivel feature for easy positioning.
- Engineered tube retention system and seal design offers superior holding and side load retention capabilities.
- Positive release bushing for easy insertion and removal of tubing.
- Thread sealant applied to all male pipe threads to reduce installation time and expense.
- Sealant applied.
- Composite body with brass pipe fitting end.
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
Specifications
Specifications
| Product: | Push Lock Air Brake Fittings |
|---|---|
| Type: | 90° Male Swivel Elbows |
| Material: | Composite |
| Pipe Size: | 1/8" |
| Tube Size: | 1/4" |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| AUTOMANN | 177.11694A |
|---|---|
| CMI | CDOT1469-4-2 |
| CORONET PARTS | 769-1-42 |
| COUPLINGS | PP69SC |
| FAIRVIEW | PC1469SW-4A |
| HEBCO | S269PMT-4-2 |
| PARKER | 169PMT-4-2 |
| PARKER | W169PL-4-2 |
| PARKER | 269PM-4-2 |
| PDC | NP69-4-2 |
| PHILLIPS | 12-94042 |
| PHILLIPS | 12-9404 |
| SMC | KV2L07-34S |
| TRAMEC SLOAN | S769PMT-4-2 |
| TRAMEC SLOAN | KV2L07-34S |
| TRAMEC SLOAN | S769PMT-4-2 |
| TECTRAN | QL1369-4A |
| VIPAR | 2649X4 |
| WEATHERHEAD | 1169X4S |
