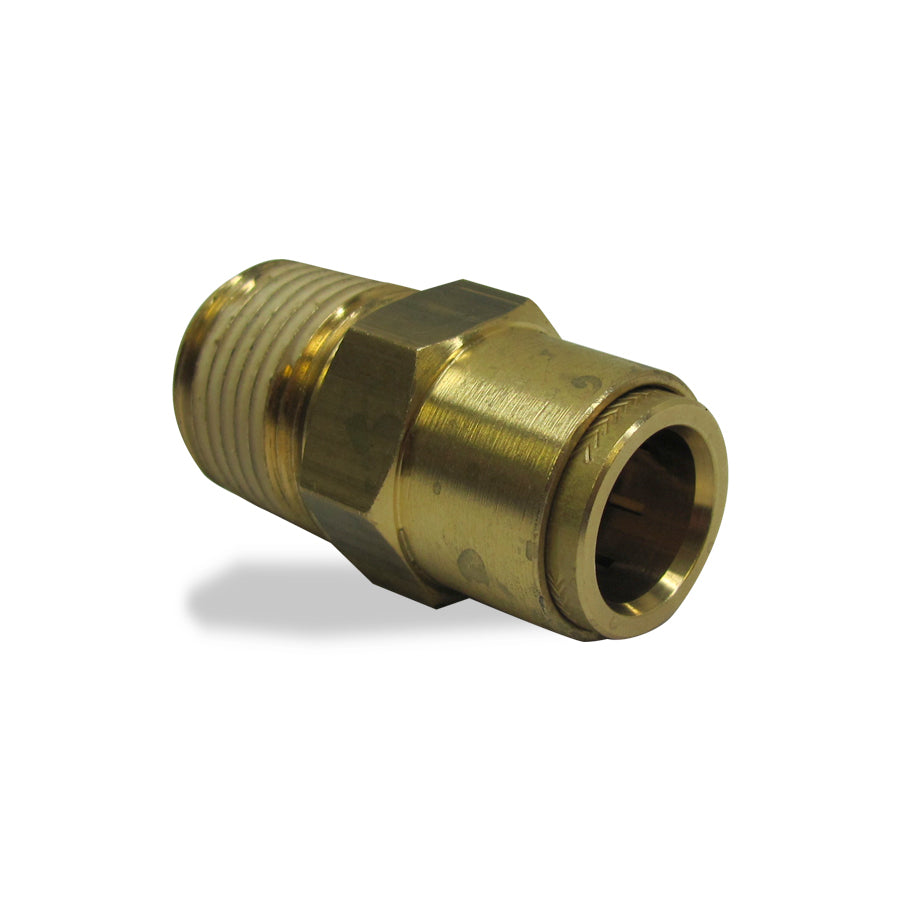

Push-Lock Air Brake Fitting, Male Connector
Push-Lock Air Brake Fitting, Male Connector
SKU: 017939
Regular price
$10.33
/ each
Regular price
Sale price
$10.33
/ each
Brass, 5/32" x 1/16"
Overview & Features
Overview & Features
- Designed for use with SAE J844 nylon tubing.
- DOT 49 CFR 571.106 compliant.
- Fittings comply with worldwide Standard and Legislation, including SAE J1131 "Hot Pull" requirements.
- Operating temperatures from -40° F to +212° F.
- Maximum operating pressure 0 to 150 psi.
- Collet with mulitple teeth for high grip on the tube.
- Side load retention capabilities.
- Positive release bushing for easy insertion and removal of tubing.
- Thread sealant applied to all male pipe threads to reduce installation time and expense.
- WARNING! Velvac's line of push-lock brake fittings and tubing are designed only for use in vehicles where air is utilized as the operating fluid. As such, Velvac's push-lock air brake fittings should only be used in a manner consistent with the manufacturer's specifications. Using Velvac's push-lock fittings or tubing improperly or in a manner inconsistent with the manufacturer's specifications may result in serious injury or property damage. For example, Velvac's push-lock fittings and tubing are not intended for use in environments exceeding 150 psi and temperatures below -40° and above +120° F. Velvac's push-lock fittings and tubing are intended for use only as defined in 49CFR571.106. The U.S. Department of Transportation prohibits the use of push-lock fittings and nylon tubing as a connection between a semi-tractor & trailer, or a drive shaft and chassis.
Specifications
Specifications
| Product: | Push Lock Air Brake Fittings |
|---|---|
| Type: | Male Connectors |
| Material: | Brass |
| Pipe Size: | 1/16" |
| Tube Size: | 5/32" |
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| TECTRAN | PL1368251 |
|---|
