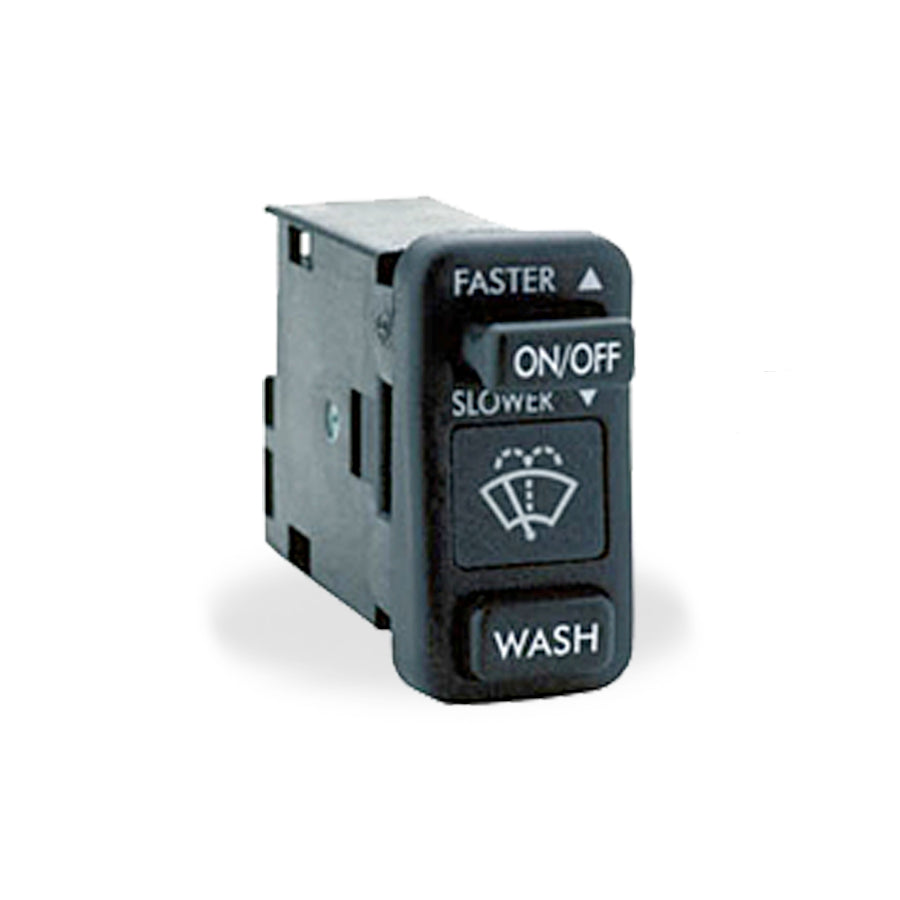

Wiper Control Switch
Wiper Control Switch
SKU: 090120
Regular price
$148.10
/ each
Regular price
Sale price
$148.10
/ each
Integrates Mulit-Speed Wiper and Washer Functions into a Single Dashboard Device
Overview & Features
Overview & Features
Operating Temperature : -20° F to +160° F
Washer Motor : 6 amps maximum current draw.
Nominal Voltage : 12 VDC (9 VDC minimum, 16 VDC maximum).
Terminal Configuration : 8 pin amp connector - mates with amp connector 770579-1 and 171639-1 socket terminals (not included and not available from Velvac).
Washer Motor : 6 amps maximum current draw.
Nominal Voltage : 12 VDC (9 VDC minimum, 16 VDC maximum).
Terminal Configuration : 8 pin amp connector - mates with amp connector 770579-1 and 171639-1 socket terminals (not included and not available from Velvac).
- Integrates multi-speed wiper and washer functions into a single dashboard device.
- Backlit for easy identification.
- Fits standard 22 mm x 44 mm opening.
Specifications
Specifications
| Product: | Switches |
|---|
Competitor / O.E.M. Part Lookup
Competitor / O.E.M. Part Lookup
| AUTOMANN | 577.3037 |
|---|
